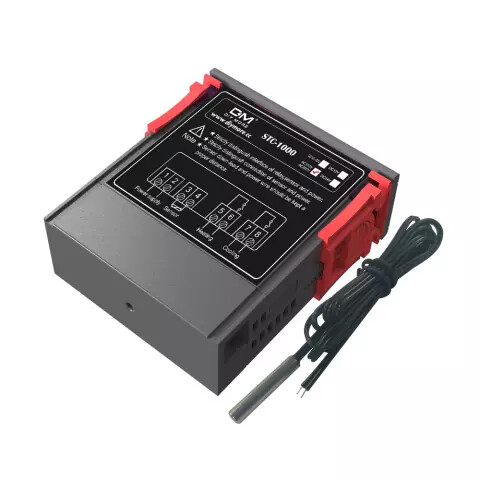

Temperature Control With NTC Sensor STC-1000 Digital LCD Display AC 110-220V 10A

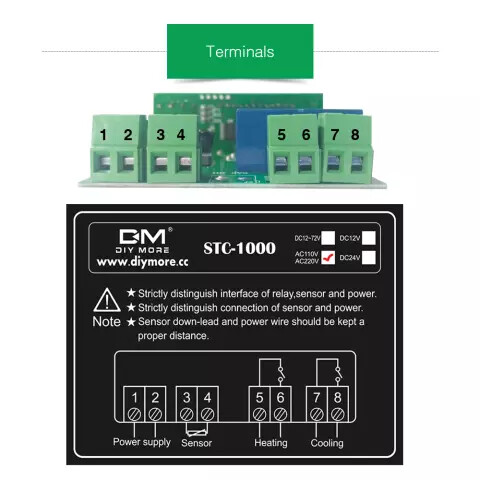

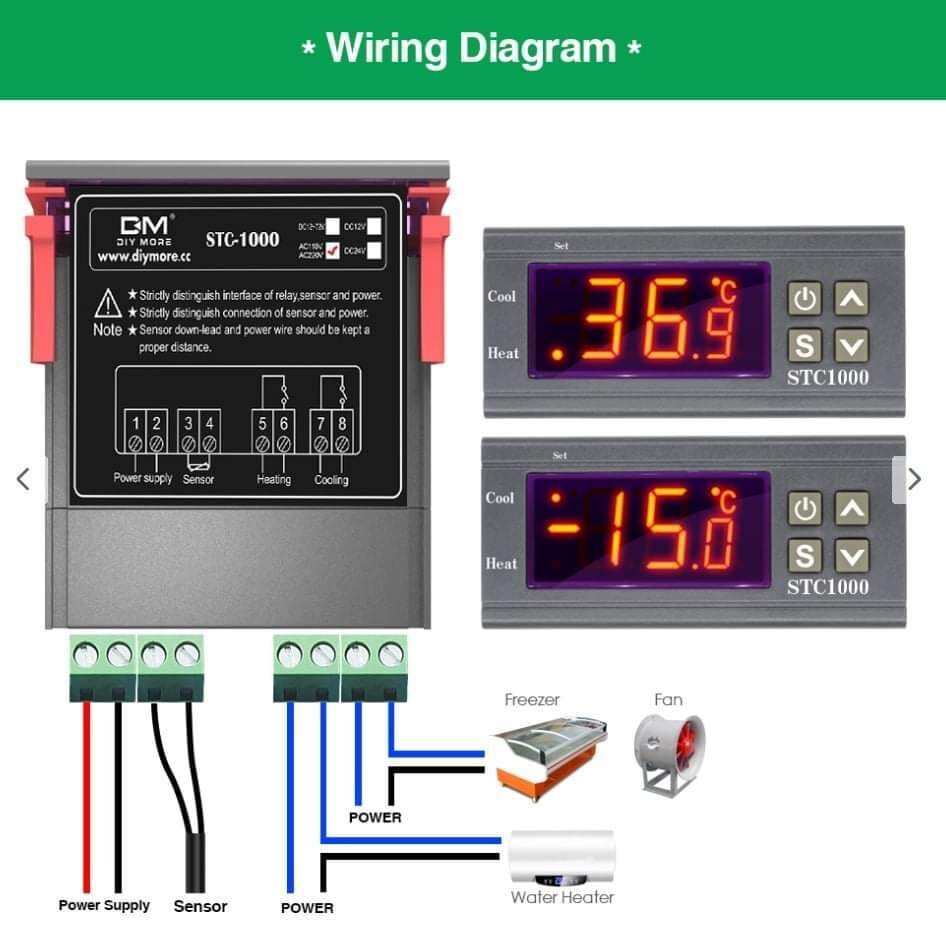

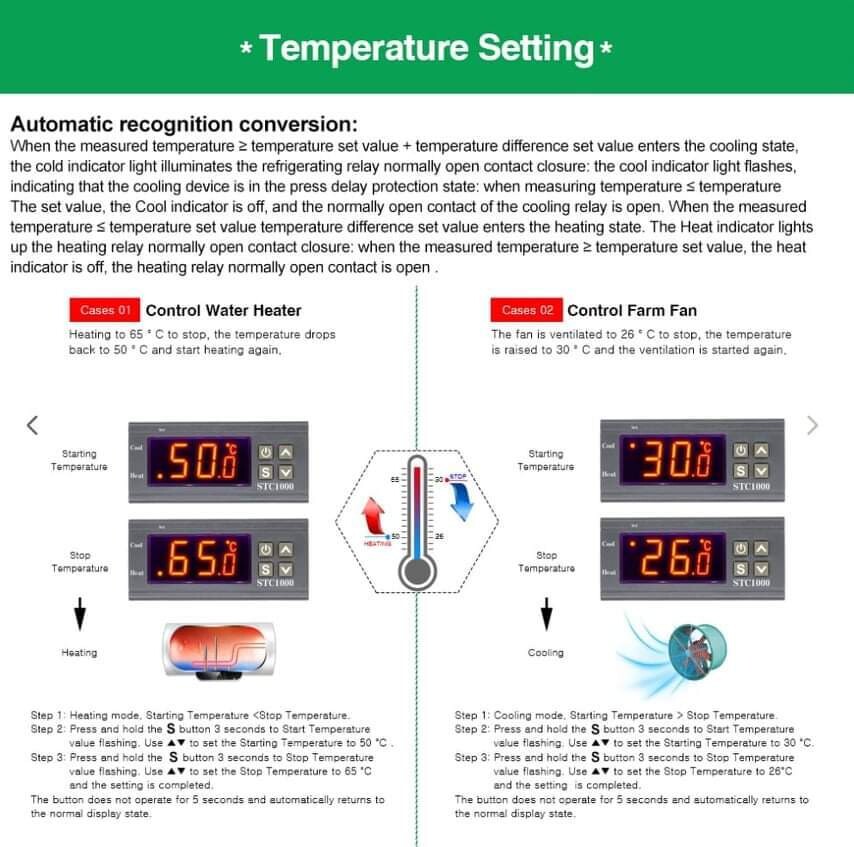

Suitable for laboratories use and other temperature controlled system. Mini and light weight design, large and clear LCD display. Wide temperature range (50-90°C). Dual heating and cooling function. Automatic over temperature alarm. Control temperature by setting the temp. set value and different value. Temp. calibration. Refrigerating control output delay protection. Wiring diagram for installation included.

Color: Black

Application: Incubator, Aquarium, Terrarium, Vivarium, Paludarium

Temp. Measuring range: -50 - 90°C(adjustable)

Sensor: NTC Sensor

Sensor Error Delay: 1minute

Relay Contact Capacity Heating: 10A (max) 250V

Relay Contact Capacity Cooling: 10A (max) 250V

Compressor Delay Protection Time: 1 ~ 10 Mins. (adjustable)

Operating temp.: 0 - 60°C

Storage Temp.: -30 - 75°C

Operating Relative Humidity: 20 ~ 85% ( No Condensation )

Alarm Output: Buzzer

Power Supply: AC 110 ~ 220V± 10% 50/ 60 Hz

Power Consumption: 3W

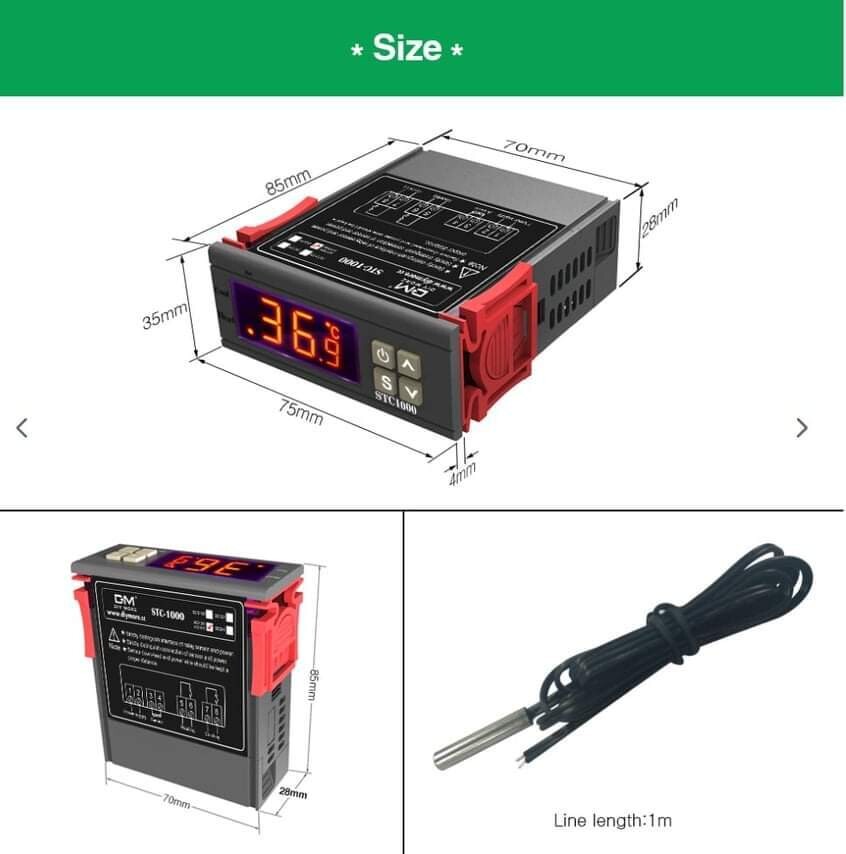

Item Dimension: Approx. 84*69*34mm

Net weight: 650g
