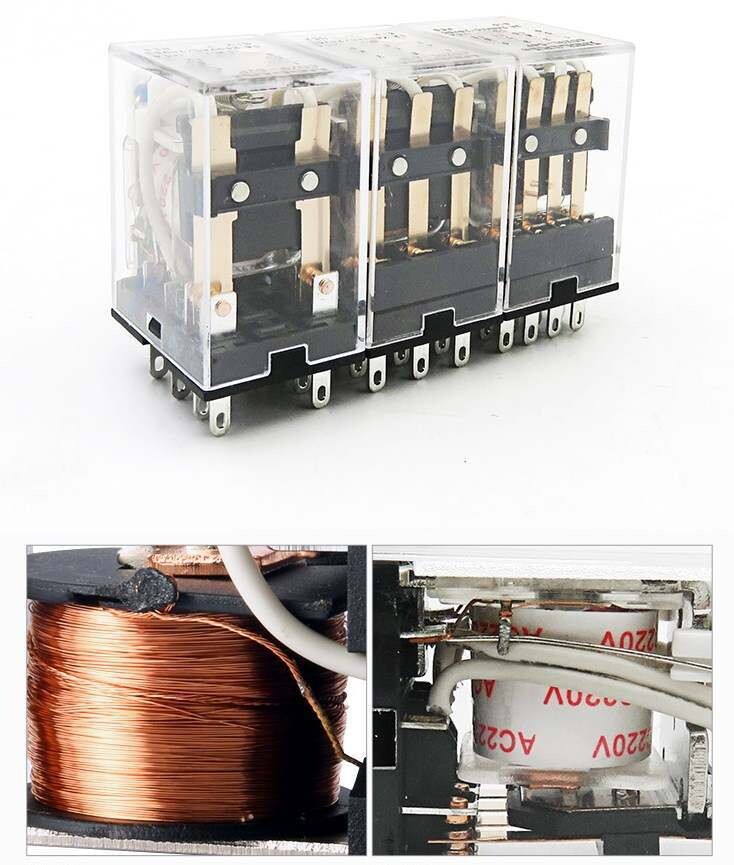

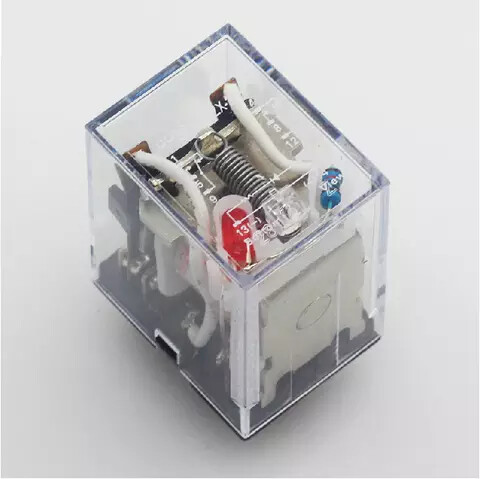

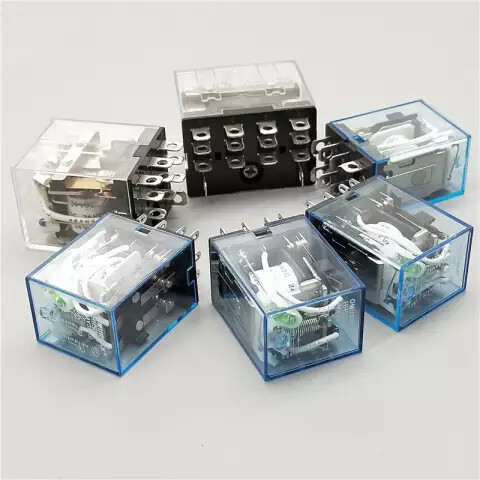

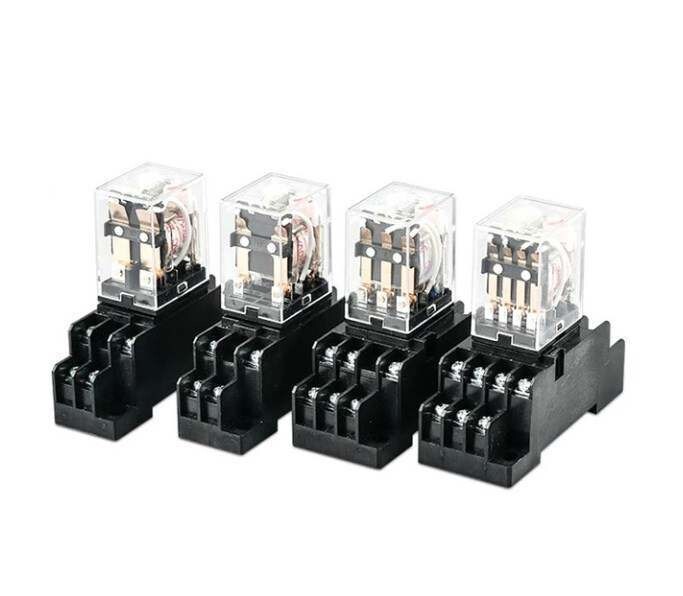

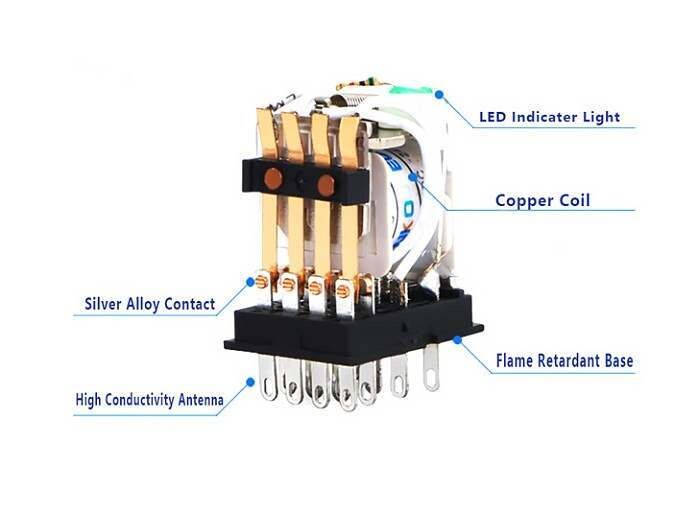

MY4NJ 24VDC Miniature Relay With Socket 14 Pin

Part no.: MY4NJ

Dimension: 27*21*35

Rated Load: 5A/240VAC 28VDC

Coil Voltage: 24VDC

Coil power: 0.9W

Pick up time:15ms

Release time: 10ms

Dielectric strength: Between same coil contact: 1000VAC/1min(leakage current 1mA)

Between opposite pole contacts: 1000VAC/1min(leakage current 1mA)

Between contacts and coil: 1500VAC/1min(leakage current 1mA)

Insulation Resistance: 100MΩ(500VDC)

Ambient temperature: -25°C ~ 55°C

Ambient Humidity: 45%-75%RH

Atmospheric pressure: 86-106KPa

Shock resistance: 10G (sinusoidal half wave pulse: 11ms)

Vibration Resistance: 10-60Hz (double amplitude: 1.0mm)

Installation: PCB socket
